INSPECTION / HOT FOILER / PROCESSING

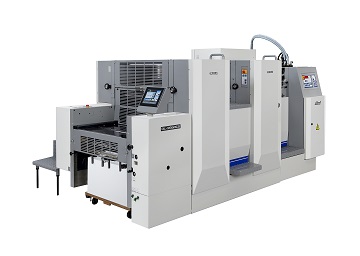

OLIVER RCS SERIES
Rotary Complex & Converting System
Sakurai RCS is a new innovative machine which “Die Cuts (half cut/full cut) “, “Perforates in the vertical or horizontal positions” and “creases” at high speed.
Features
- High speed (10,000 sheets/hour)
- Numbering and perforating can be done at same time
- Space saver
- Labor saver
Major Specifications
| Model | OLIVER 66RCS | OLIVER 266RCS |
|---|---|---|
| Max. paper size (W x L) (mm) | 660 x 470 | |
| Min. paper size (W x L) (mm) | 297 x 200 | |
| Process speed (IPH) | 4,000 ~ 10,000 | |
| Paper thickness (mm) | 0.04 ~ 0.3 | |
| Delivery pile height (mm) | 400 | |
| Feeder pile height (mm) | 580 (Option: 980) | |
| Machine dimensions (LxWxH) (mm) | 2,246 x 1,527 x 1,479 | 3,537 x 2,268 x 1,609 |
| Machine weight (kg) | 2,200 | 5,200 |
| Power consumption (kW) | 4.94 | 7.8 |
Standard Accessories
| OLIVER 66RCS | OLIVER 266RCS |
|---|---|
| Magnet cylinder for flexible die fixing | |
| Feeder pre-loading | |
| Preset counter | |
| Mech. Double sheet detector | |
| Ultra-sonic double sheet detector | |
| Front lay sensors | |
| Side lay sensors | |
| Anti-static bars | |
| Pile board horizontal position adjusting | |
| LCD control panel | SIS/Operational display |
| Suction belts for feed board | |
| 2nd unit magnetic cylinder remote positioning | |
Optional Equipment
| OLIVER 66RCS | OLIVER 266RCS |
|---|---|
| Speed range change (2,000IPH~) | |
| Single action feed wheels set up | |
| Numbering unit drive system | |
| Powder spray device | |
| Motorized delivery board lift | |
| Sheet feed timing adjusting | |
| Continuous delivery device | |
| Feeder pile board downs to floor | |
