INSPECTION / HOT FOILER / PROCESSING
MS-102INS

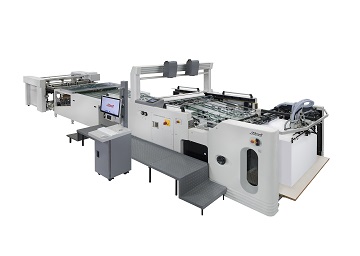

Automatic Printed Sheet Inspection System
Renovation of Sakurai Inspection System for fasten processing speed up to 4,000 sheets/hour, and high pile specifications. By using a main body of MS series, register device and vacuum cylinder, high accuracy sheet feeding is realized.
Features
- Inspected sheets are sorted by optional rejecter conveyor.
- Sheet transporting part is same as MS-102AX, screen press operator can also run MS-102INS
- Pattern matching method is adopted as inspection method.
- Operation panel and display are re-positioned for easy and accessible operation.
Major Specifications
| Model | MS-102INS |
|---|---|
| Feeder | Rear pick up feeder |
| Sheet feeding way | Stream feeding only |
| Max. sheet size (W x L) (mm) | 1,050 x 750 |
| Min. sheet size (W x L) (mm) | 560 x 350 |
| Sheet thickness (mm) | 0.1 ~ 0.4 (*) |
| Subject sheets | Paper substrate(no-transparent sheet) |
| Camera resolution (mm) | 0.13 x 0.13 |
| Inspection speed (SPH) | 2,000 ~ 4,000 (*) |
| Scanning image width (mm) | Max. 1,050 |
| Number of camera | 2 |
| Camera pixel | 4,096-bit Line Camera |
| Lighting | LED |
| Machine dimensions (L x W x H) (mm) | 7,602 x 3,080 x 1,981 (Incl.Rejector) |
| Machine weight (kg) | 5,200 |
| Power consumption (kW) | 9.5 |
(*) Subject to printed sheet conditions.
Standard Accessories
- ・Push/pull convertible side lays(with detection sensor)
- ・Side lay register
- ・Cylinder built-in front lay sensor
- ・Rebound stopper at feeder side
- ・Temporary sheet stop quick position adjustment
- ・Rebound stopper at delivery side
- ・Additional rebound stopper for inspection system
- ・Embossing metal feeder board
- ・Inspection camera 4096bit x 2
- ・LED lighting for camera x 3
Optional Equipment
- ・Anti-static devices
- ・Double sheet detector (Mechanical/Ultra-sonic)
- ・OK/NG rejecting device
- ・Stacker
- ・Tape marker device
